15-Perf 65mm
Ultra 7015/70

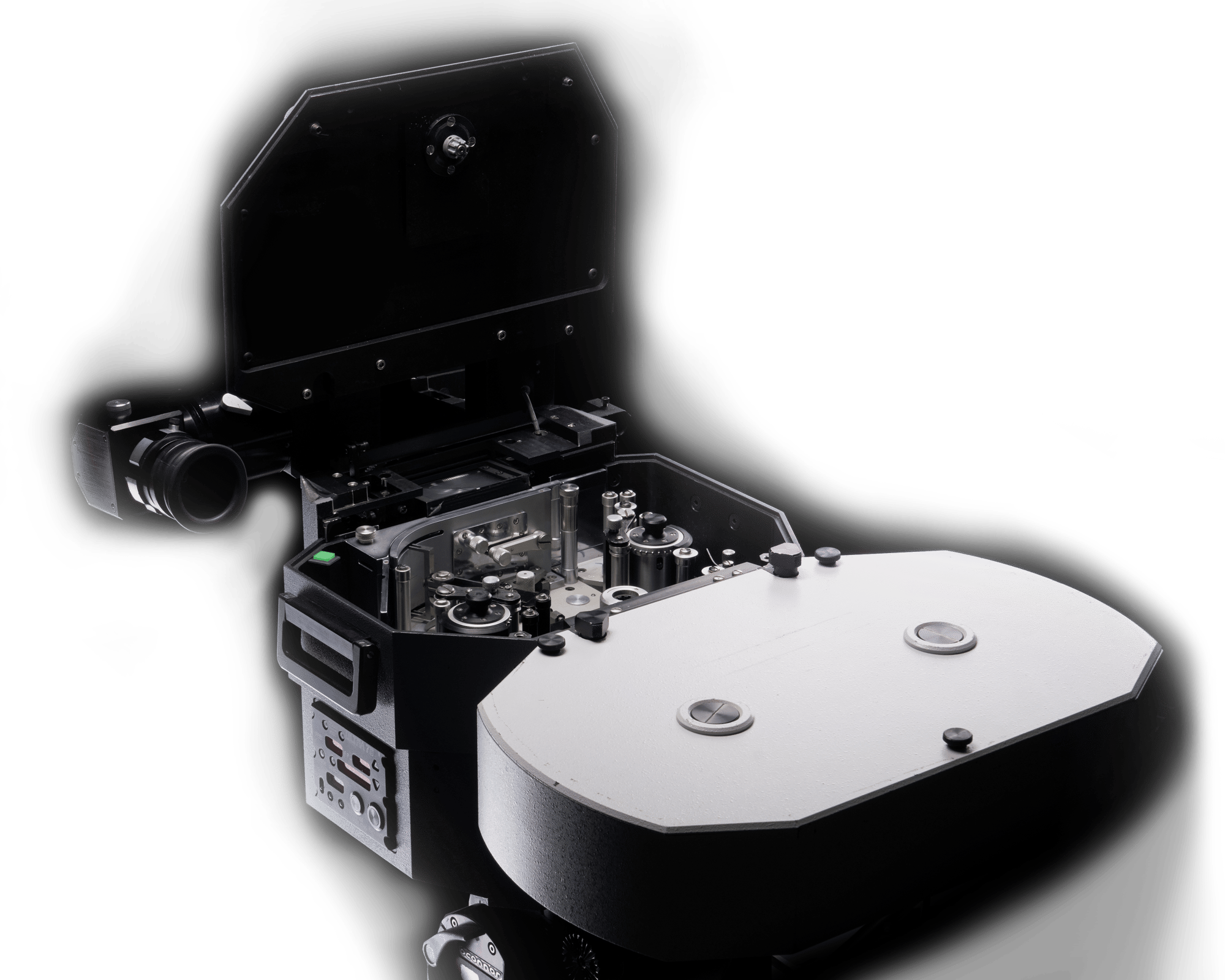

Modernized 15-perf 65mm film cameras. Eight claws, four registration pins and a vacuum backplate produce some of the world’s steadiest 15/70 images, with the rich color and texture of analog film.
KEY features
- Film format
- 15-Perf 65mm
- FPS range
- 1-24 MOS
- Magazine capacity
- 1000 ft
- Gate
- vacuum
- Lens mount
- IMAX
- Video assist
- 2K digital
- Sound blimp
- Fiberglass (optional)
- Weight
- 73 lbs
The format
The biggest capture format in existence.
15/70 is the biggest motion picture capture format in existence, with each frame containing up to 18K of resolution. Capturing stunning imagery that combines ultra-high resolution with the rich color and texture of analog film.
A single frame of 15/70 is nearly 10 times larger than standard 35mm film, more than four times larger than VistaVision, and three times larger than 5-perf 65mm.
The Ultra70 cameras feature an optional fiberglass sound blimp, as well as an underwater housing built by the legendary Pete Romano of Hydroflex. Three camera bodies and 12 magazines are available.
Modern features
- Digital MCU Electronics from 2026
- Panavision Remote Control Integration
- AKS mounting plates
- Preston FI+Z System Integration
- 2-pin and 3-pin RS AKS power
- Adjustable Ramp for Cold Weather
Ultra 70
Sound BLIMP
Take a closer look at the optional sound blimp, modern camera electronics, and AKS mounting points on the Ultra 70.

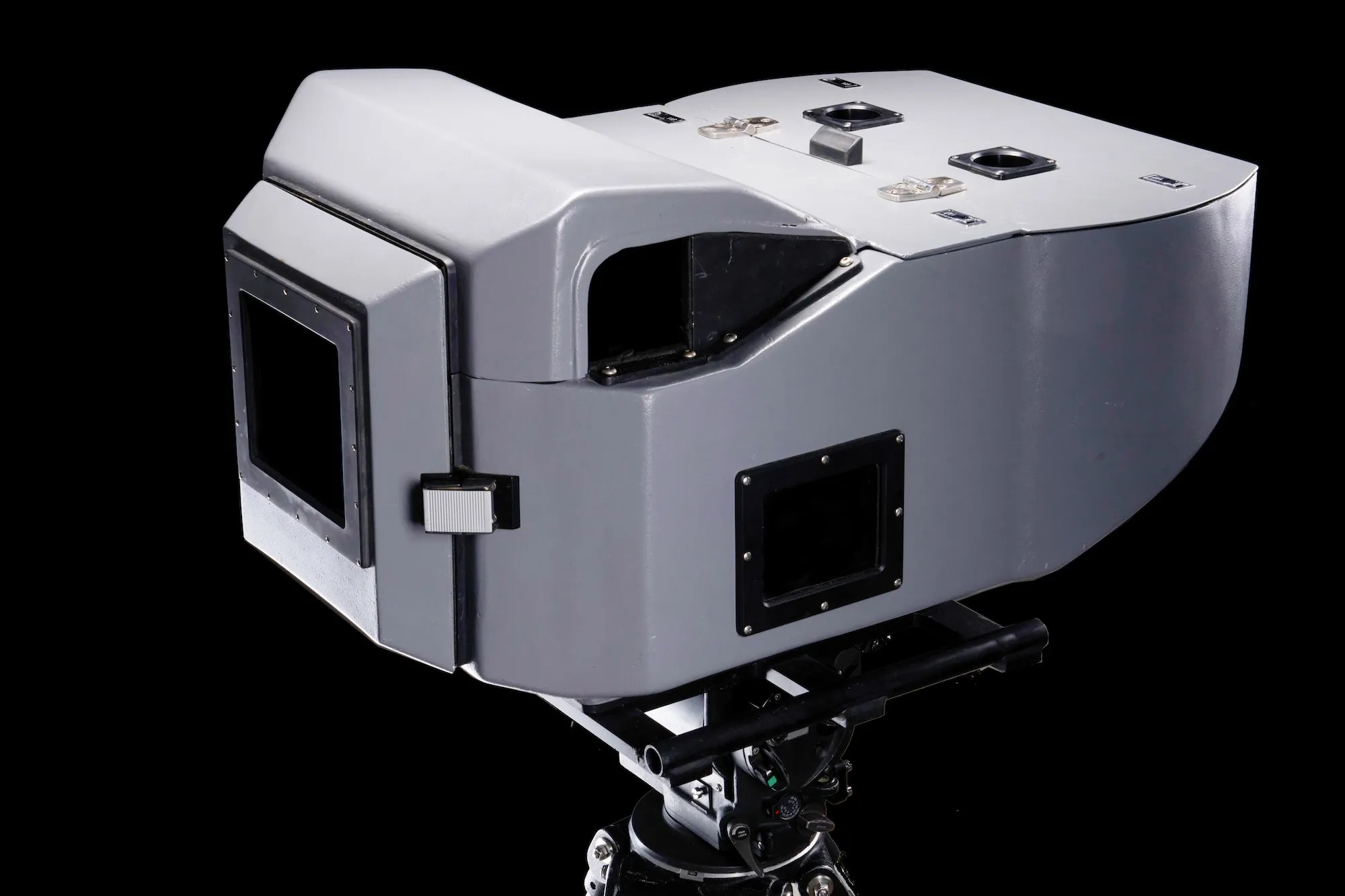

Sound blimp
SIDE VIEW
A side view of the fiberglass sound blimp for the Ultra 70 cameras.

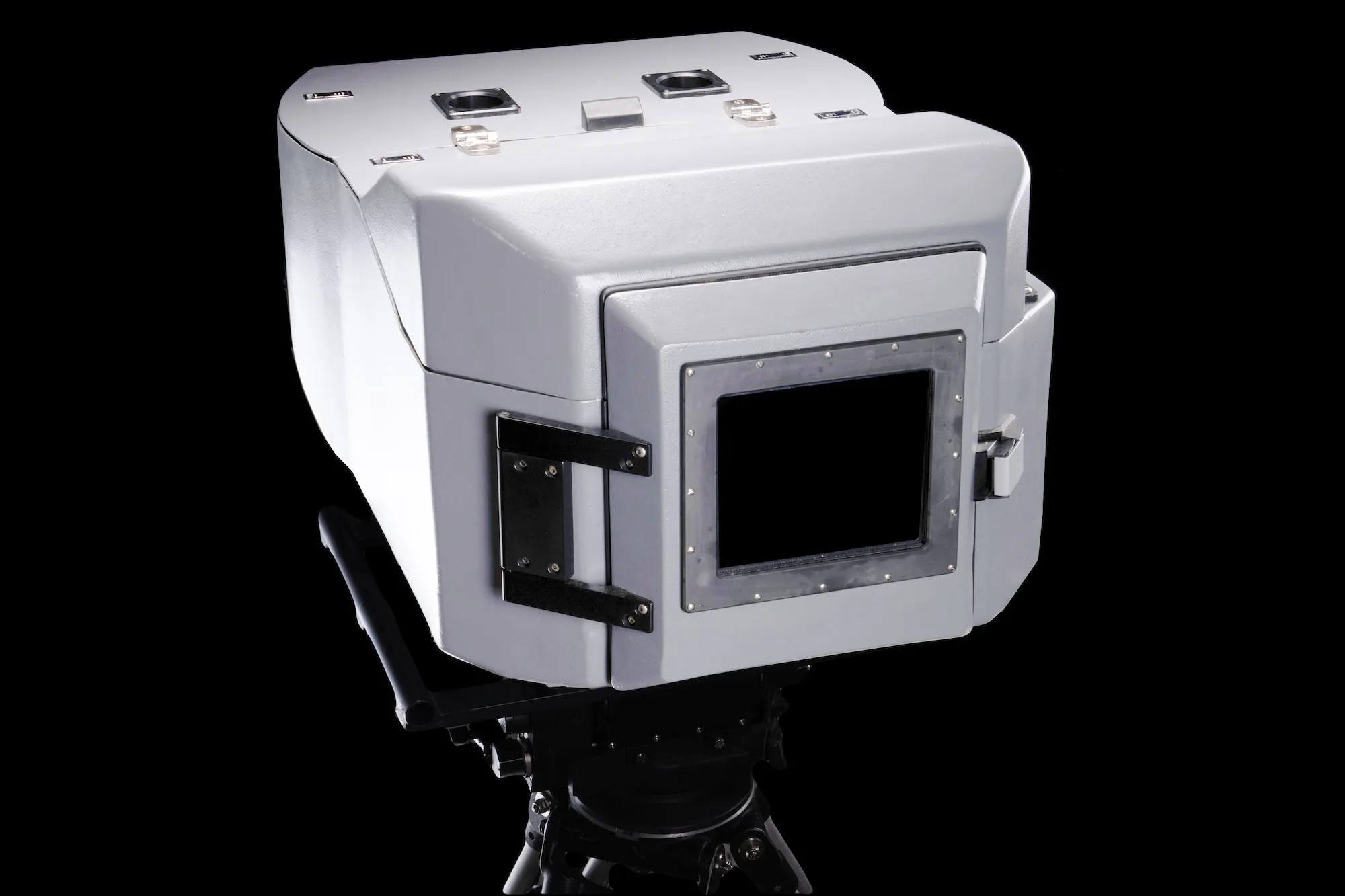

Sound blimp
FRONT VIEW
A front view of the fiberglass sound blimp for the Ultra 70 cameras.

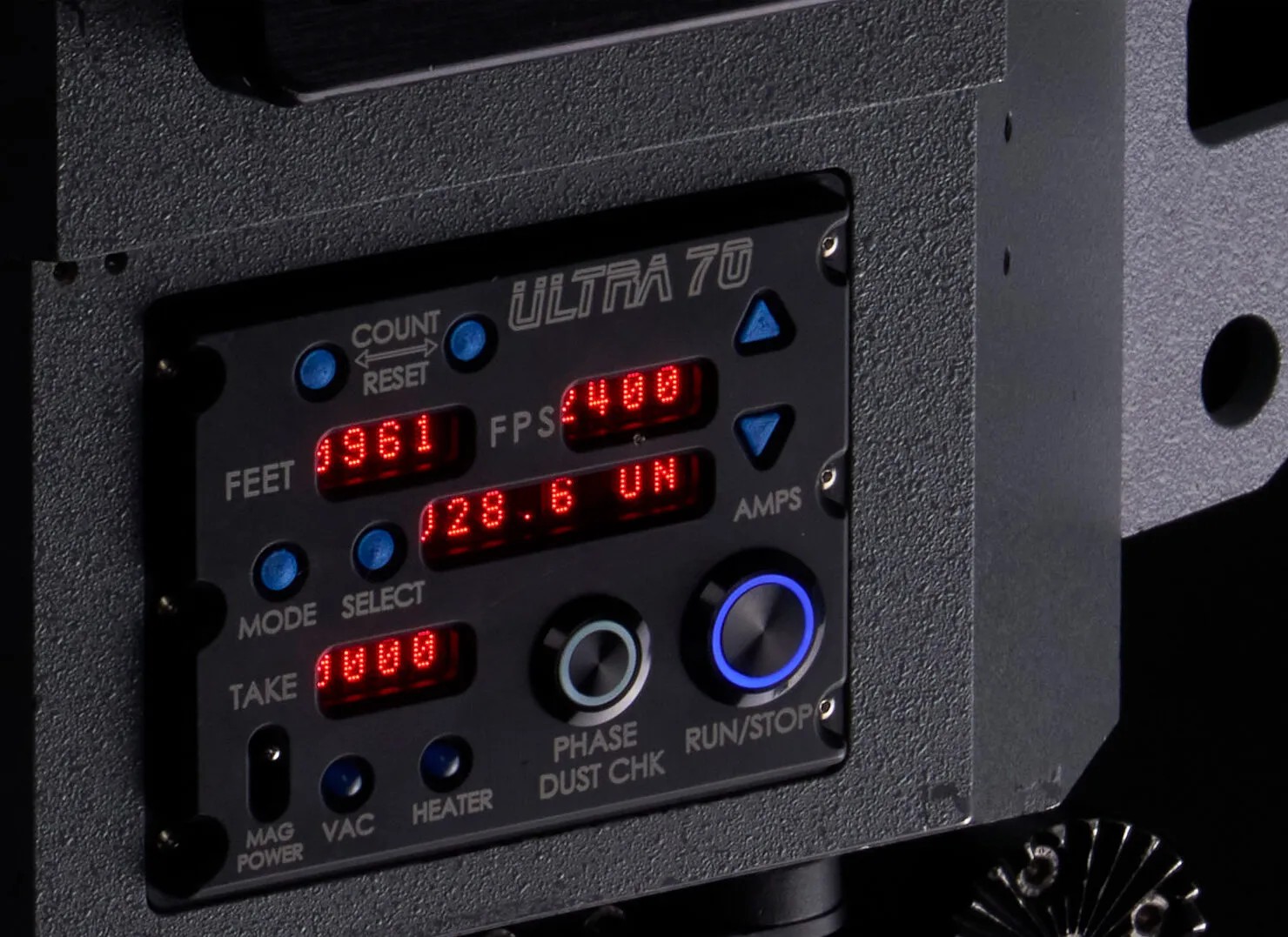

Modern electronics
Digital control panel
Digital controls for footage counter, frame rate, heater, ramp-up speeds,and various camera modes.
BUILDING OUT THE CAMERA

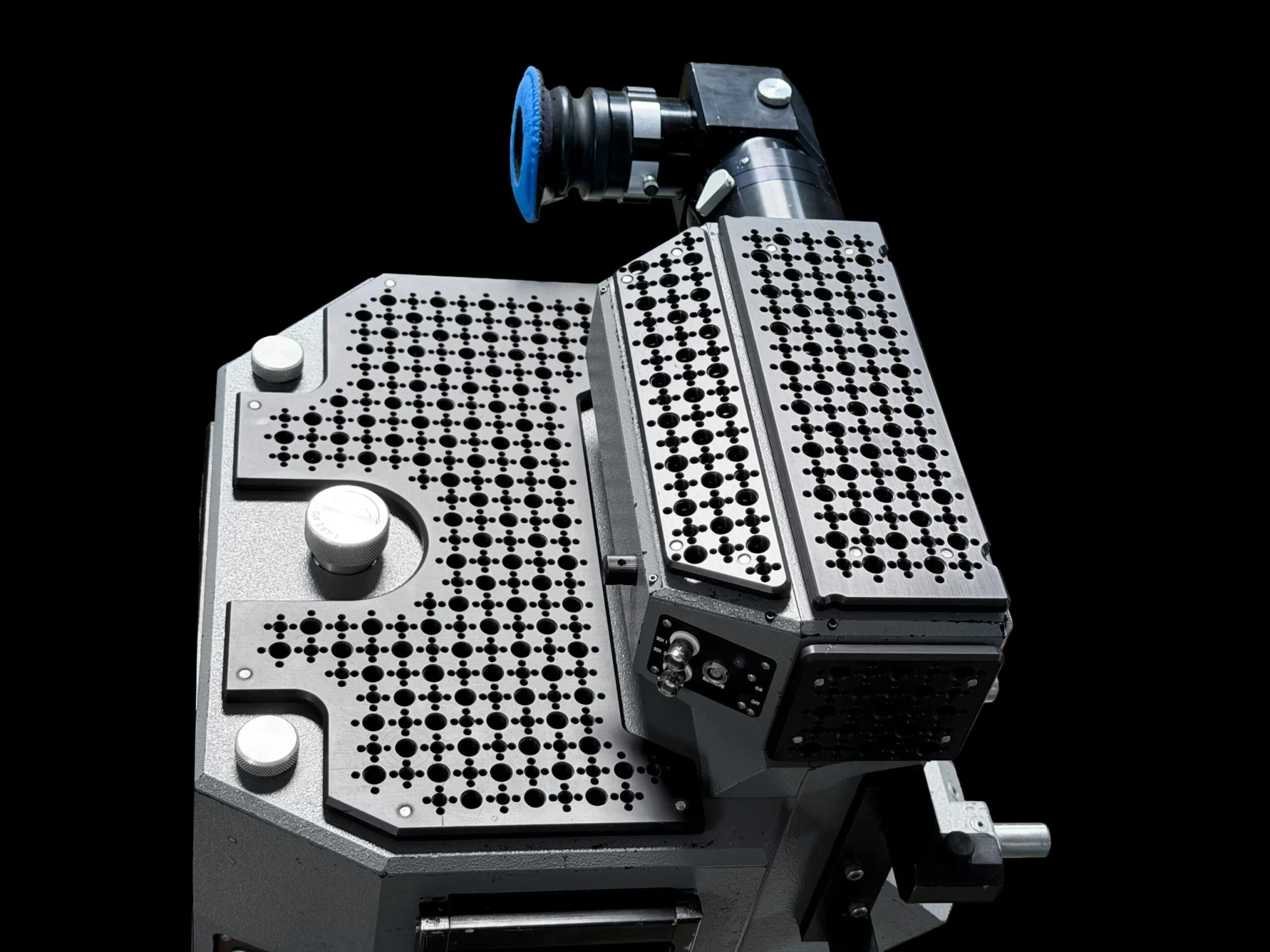

AKS mounting plates
Accessory mounting points with 3/8-16" and 1/4-20" with ARRI locating pins.
The glass
IMAX-mounted glass.
IMAX-mounted Hasselblad Zeiss, Mamiya and Canon lenses ranging from an ultra-wide 30mm to a 1200mm telephoto lens deliver exceptional sharpness and contrast.
Custom IMAX-mount lenses are available from ZERØ OPTIK and ATLAS LENS CO.
